You have a crush on a pantie sewing pattern, but unfortunately the range size is not big enough for you? No worries!There is no reason that you can’t find happiness, so we explain how to grade a lingerie bottom in size 2XL (size 50-52) from your sewing pattern in size XL 😉

NB: This article is valid for our pattern models Margarita and Limoncello (Version A and B of each) for instance 🙂

Are you ready ? Let's go !

  1. Prepare the sewing pattern
  2. Join the two front pieces
  3. Front piece grading
  4. Back piece grading

1. Prepare the sewing pattern

Select the size XL from your original pattern.

Here, in red on Margarita briefs pattern :

gradation culotte 2XL

2. Join the two front pieces

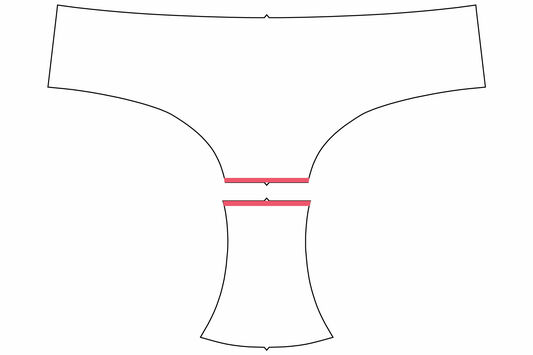

Delete the sewing allowance from the seam between the front and the gusset pieces.
For Margarita sewing pattern, the seam allowance are 5 mm (13/64 in).
delete sewing allowances

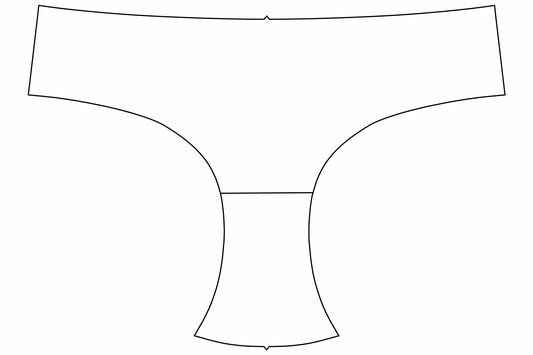

Join the front and gusset together to form one piece join front and gusset

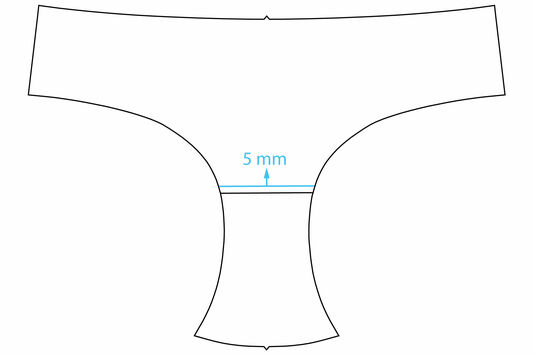

Move the seam about 5mm upper (13/64 in)

Why?... We often have more belly volume in largest sizes, so the volume of the little tummy tilts the brief backwards.

So, to place the gusset in the correct place once worn, we move a little bit this seam.
Now you know everything! 😉
move gusset seam

NB: Those steps (Deleting the seam allowance, and, Alteration of the position of the gusset seam) are valid ONLY for the front part.

3. Front piece grading

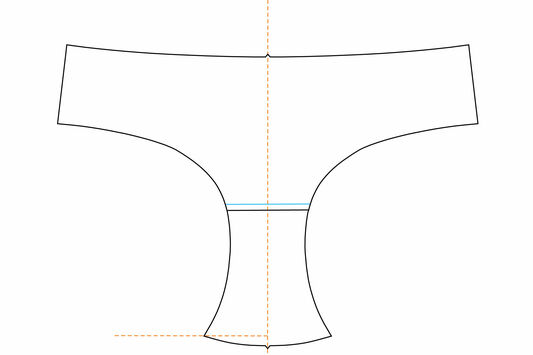

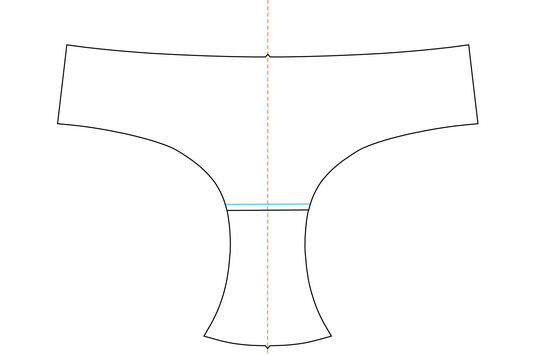

Draw a straight line at middle front, and extend it on top (Draw "Y" axis, in mathematical terms) draw vertical axis
Draw a perpendicular line from the middle front, through the external point of the gusset ("X" axis) draw perpendicular line

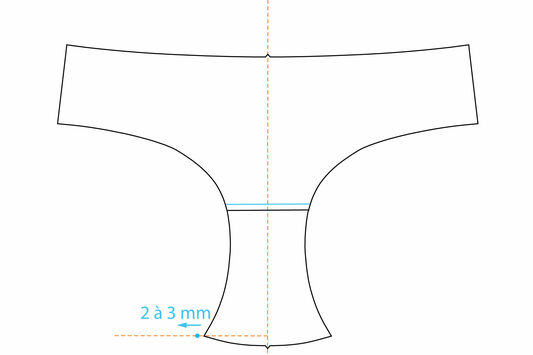

Place a point at 2-3mm from the original point (1/8 in).
This in order to cover a little bit more buttocks.
grading panties size 2XL

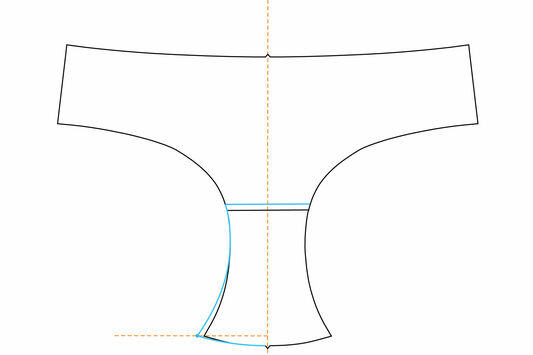

Draw the new curve of the leg line. grading panties size 2XL waistline

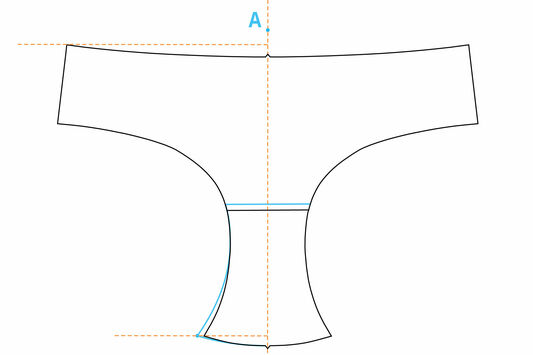

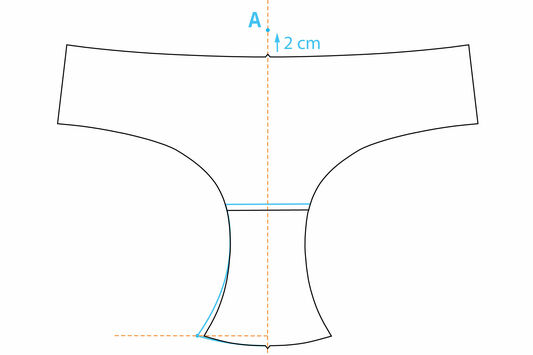

On the middle frontline, place a mark 2cm (3/4in) above the waistline of size XL.

This will be your A point.
grading panties pattern size 2XL

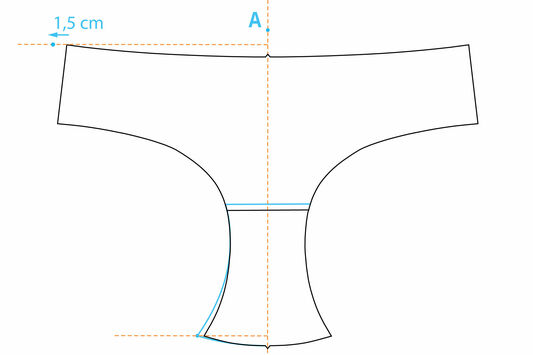

Then, from the "side waistline" point, draw a perpendicular line to the middle front line (second "X" axis) grading panty size 2XL
On this line, and from the side waistline point, place a mark at 1.5cm (9/16in). side seam panties grading
From this mark, draw a line parallel to the middle front one ( second "Y" axis) panty grading

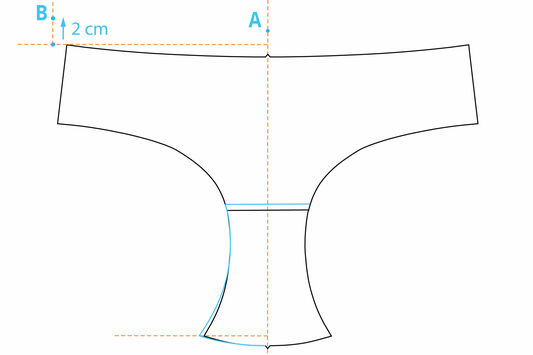

On this line, place a new mark at 2cm above (3/4in).
This will be your B point.
2XL panties lingerie pattern

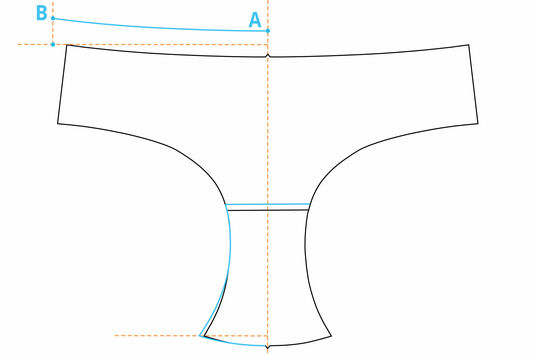

Draw your new waistline, from point A to B. panties lingerie pattern grading

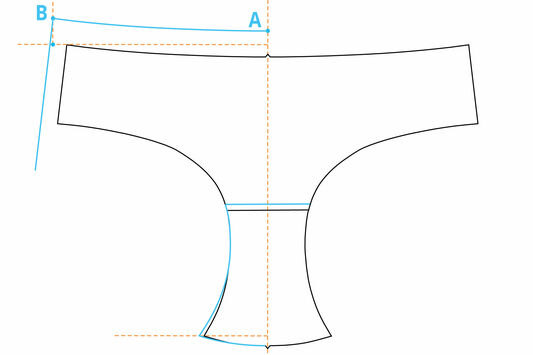

From B point, draw a parallel line to the side of the size XL. panties pattern alteration

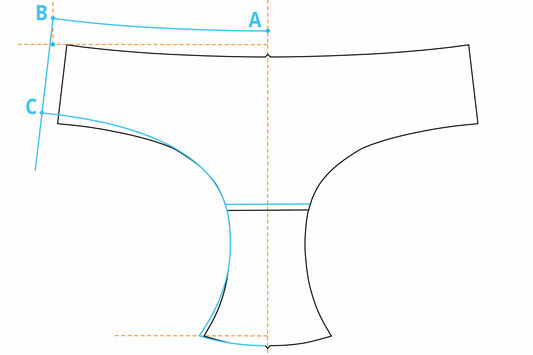

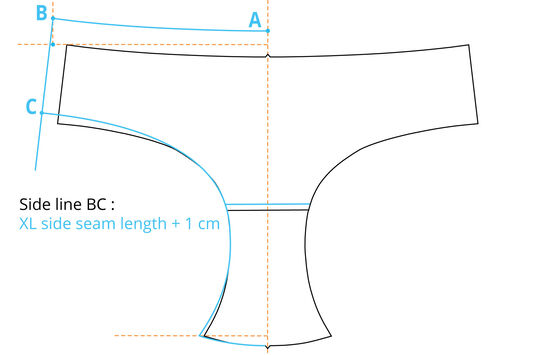

On this line, place a mark by doing some maths:

XL side seam length + 1cm (3/8in).

You have your C point.
lingerie sewing pattern grading calculation
Starting from C point, draw the leg line, joining the new gusset line. leg line panties

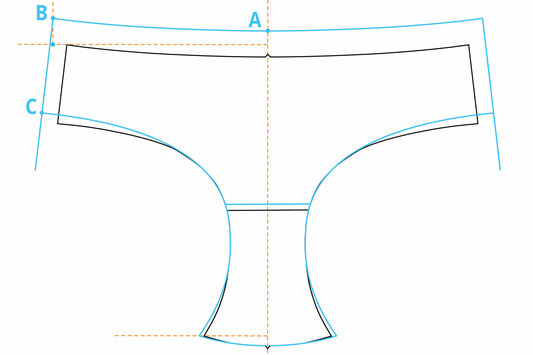

Symmetrize your grading, and draw your front and gusset pieces separately.

Don’t forget to put back the seam allowance that you have deleted at first 🙂
lingerie pattern making panty grading

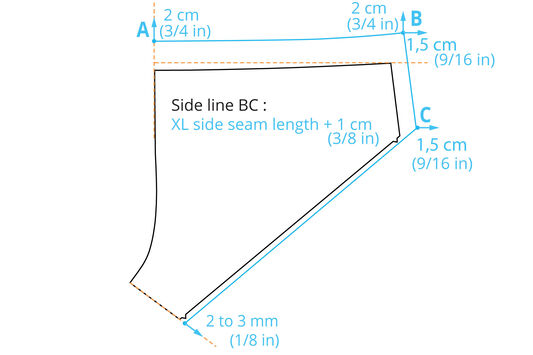

4. Back piece grading

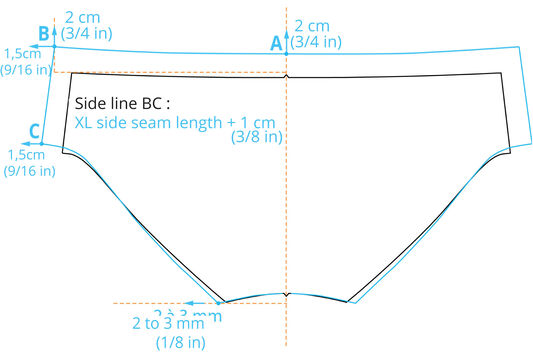

For the back piece, the process and values to apply are just the same as for front. Easy!

Margarita briefs Version A add size lingerie pattern
Margarita briefs Version B add size panty lingerie pattern

Now, you just have to check that your lines are matching together (by connecting the front and back at side seam, or the back with the crotch)

"Et voilà! " You know how to grade your sewing pattern in size 2XL 🙂

We hope you enjoyed this tutorial and that it inspired you for future creations👙
